Description

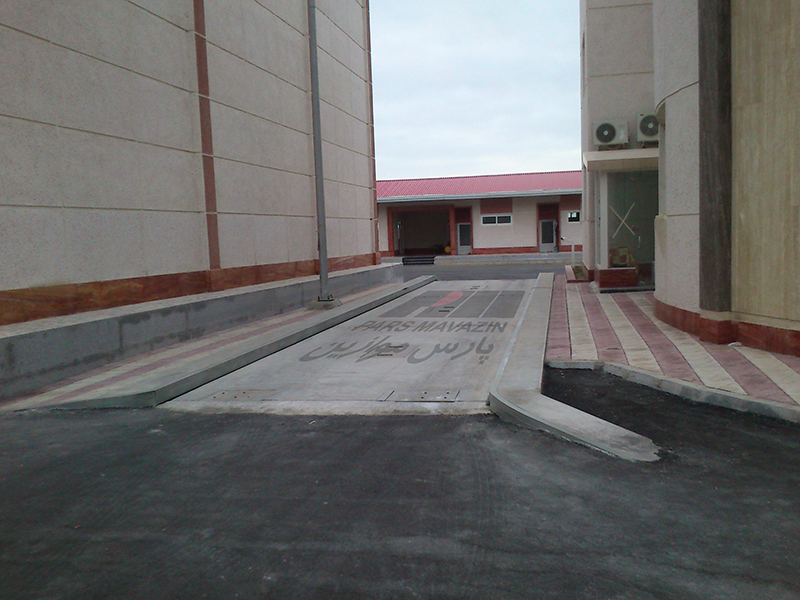

Precast All-Concrete Weighbridges This type of weighbridge consists of precast concrete sections manufactured at the Pars Movazin factory, then transported to the customer's site and assembled. Because the platform and foundation components are designed to be modular, the entire weighbridge can be assembled and installed in a short amount of time. Aside from the concrete support foundation slabs and ramps for above-ground installation, no concrete pouring is required before assembly. Due to the access hatches built into the platform surface, access to the load cells and the underside of the weighbridge is easily possible, which simplifies maintenance and cleaning. Additionally, the modular design of the weighbridge components significantly reduces transportation costs compared to other all-concrete weighbridges. It's also worth noting that due to the lower weight of the individual components, a smaller crane is needed for their movement, further reducing customer costs.
Advantages of Precast All-Concrete Weighbridges
  • Easy maintenance and cleaning with dedicated load cell access hatches.
  • Quick assembly due to the modular design of precast components.
  • Lower transportation and crane costs thanks to the optimal weight of the precast modules.
  • Fast and easy relocation (within 24 hours).
  • Option to use precast foundation, walls, or ramps (as an alternative).
  • Adjustable platform length by changing the number of modules.
  • Installation options: above-ground or in-ground.
Available Types
  • In-ground: VS 505 C
  • Above-ground: VS 415 C
Weighing Capacity
  • 40,000 kg with 4 load cells, suitable for pick-up trucks and trucks with an axle length under 8 meters.
  • 60,000 kg with 6 load cells, suitable for trucks, trailers, etc., with an axle length under 16 meters.
  • 80,000 kg with 8 load cells, suitable for trailers, transit vehicles, etc., with an axle length under 16 meters.
Electronic Equipment
  • Load cells in two models: SCL (analog) and CPD (digital).
  • Indicator: DD700 (varies depending on whether the load cell is analog or digital).
  • Junction box.
Accessories
  • Rubber bumper.
  • Large display.
